Avoid an obstacle in 1D with Active Inference

PyMDP agents learns to avoid a randomly placed obstacle

Bayesian Inference
Active Inference
Probabilistic Programming
PyMDP
Python
Author

Kobus Esterhuysen

Published

September 29, 2026

Modified

September 30, 2026

Back to Blog |  LearnableLoopAI.com |  Portfolio of Projects |  LinkedIn


1 BUSINESS UNDERSTANDING

In this problem an active inference agent needs to learn to avoid a randomly placed obstacle by either moving left or right in order to reach one of the end locations that each has a reward. It moves through a 1D grid and the agent does not know the location of the obstacle. The obstacle is placed either on the left or the right in a probabilistic way at the start of an epoch. The obstacle is more likely to be placed on the left, than on the right.

More detail:

  • There are 5 locations in the (horizontal) 1D grid named (from left to right):
    • 'LEFT_REWARD', 'LEFT', 'CENTER', 'RIGHT', 'RIGHT_REWARD'
  • The agent always start in the center location (called CENTER) at the beginning of an epoch. The agent has an accurate belief about this starting location.
  • The end locations on both the left and on the right side of the grid are associated with a reward for the agent, LEFT_REWARD and RIGHT_REWARD.
  • The obstacle is placed probabilistically at either location LEFT or location RIGHT
  • When the agent bumps into the obstacle the agent’s location remains unchanged and a COLLISION is observed.
  • The agent observes its own location via the Location observation modality, o_0
  • The agent observes the reward situation via the Reward observation modality, o_1
  • The agent observes its own movement via the Move observation modality, o_2
  • The agent’s preferred observation is o_1 == 'REWARD'
  • The agent was deliberately designed to NOT have perfect knowledge of the workings of the environment. For example:
    • The environment places the obstacle more often on the left than on the right whereas the agent believe that this placement is equally likely on either side.
    • The agent’s beliefs about the dynamics around the LEFT_REWARD and RIGHT_REWARD end locations are different from the environment’s reality.

A few coding conventions:

  • Global variable names usually start with an underscore, i.e. _
  • This notebook follows a standardized framework. This is my own framework, developed over a number of years, and is informed by the CRISP-DM framework, the work of Warren Powell (Princeton), the work of Bert De Vries, the work of Karl Friston as well as that of the larger Active Inference community.
! python --version
import sys
!{sys.executable} -m pip list | grep inferactively-pymdp
Python 3.10.12
inferactively-pymdp       1.0.4

[notice] A new release of pip is available: 23.0.1 -> 26.2.1
[notice] To update, run: pip install --upgrade pip
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import random

import jax
import jax.numpy as jnp
from jax import random as jr
from jax.nn import softmax

from pymdp import utils
from pymdp.agent import Agent

Define some auxiliary functions

def plot_likelihood(
  matrix,
  title_str="Likelihood distribution (A)",
  yticklabels=None,
  xticklabels=None
  ):
    """
    Plots a 2-D likelihood matrix as a heatmap
    """
    matrix = np.asarray(matrix)
    if not np.isclose(matrix.sum(axis=0), 1.0).all():
      raise ValueError("Distribution not column-normalized! Please normalize (ensure matrix.sum(axis=0) == 1.0 for all columns)")

    fig = plt.figure(figsize = (5,5))
    ax = sns.heatmap(
      matrix,
      yticklabels = yticklabels,
      xticklabels = xticklabels,
      ## cmap = 'gray',
      cmap = "OrRd",
      linewidths=1,
      cbar = True,
      square=True,
      vmin = 0.0,
      vmax = 1.0)
    plt.title(title_str)
    plt.show()

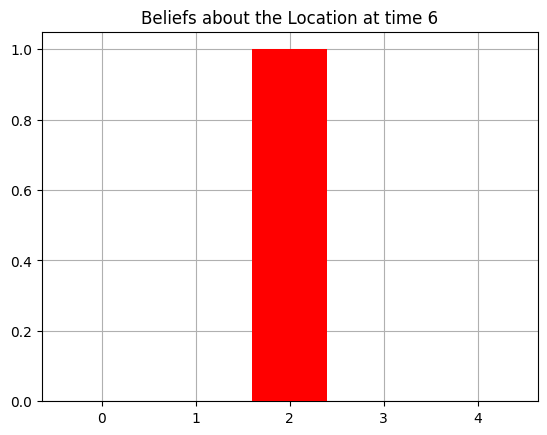

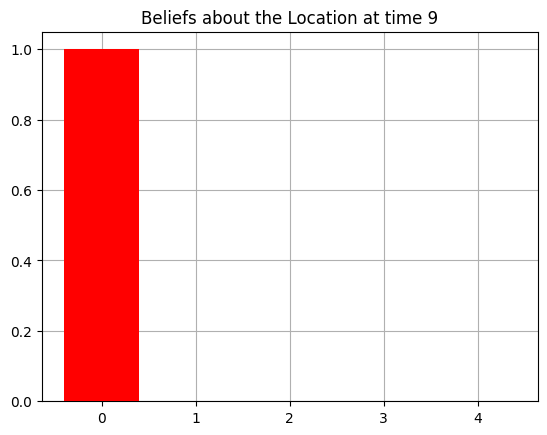

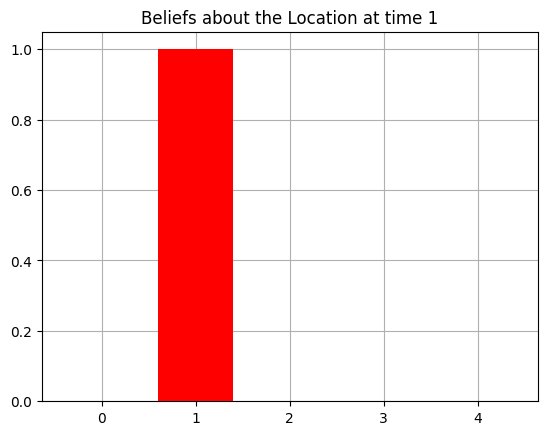

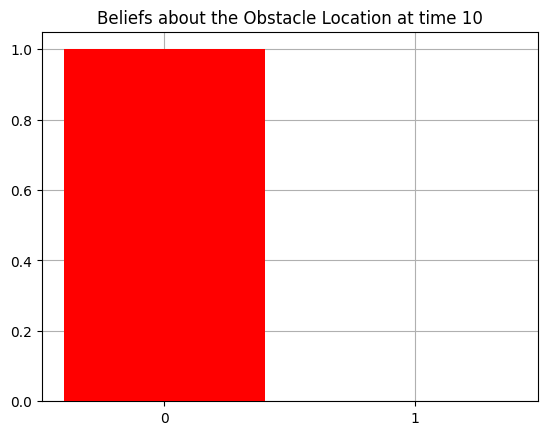

def plot_beliefs(belief_dist, title_str=""):
    """
    Plot a categorical distribution or belief distribution, stored in the 1-D numpy vector `belief_dist`
    """
    belief_dist = np.asarray(belief_dist)
    if not np.isclose(belief_dist.sum(), 1.0):
      raise ValueError("Distribution not normalized! Please normalize")
    plt.grid(zorder=0)
    plt.bar(range(belief_dist.shape[0]), belief_dist, color='r', zorder=3)
    plt.xticks(range(belief_dist.shape[0]))
    plt.title(title_str)
    plt.show()
## --- replacements for pymdp.legacy.utils helpers that no longer exist in the JAX API ---
def np_zeros_list(shapes):
    """Replaces np_zeros_list(): a plain list of (mutable) numpy arrays.
    The model is built in numpy and converted to jnp when the Agent is created."""
    return [np.zeros(s) for s in shapes]

def np_uniform_list(dims):
    """Replaces np_uniform_list(): a list of uniform categorical vectors."""
    return [np.ones(d)/d for d in dims]

def onehot(idx, dim):
    """Replaces onehot()."""
    v = np.zeros(dim); v[idx] = 1.0
    return v

def is_normalized(dist):
    """Replaces is_normalized(): True if every column (axis 0) sums to 1."""
    if isinstance(dist, (list, tuple)):
        return all(is_normalized(d) for d in dist)
    return bool(np.allclose(np.asarray(dist).sum(axis=0), 1.0))

2 DATA UNDERSTANDING

There is no pre-existing data to be analyzed.

3 DATA PREPARATION

There is no pre-existing data to be prepared.

4 MODELING

4.1 Narrative

Please review the narrative in section 1.

4.2 Core Elements

This section attempts to answer three important questions:

  • What metrics are we going to track?
  • What decisions do we intend to make?
  • What are the sources of uncertainty?

For this problem, the only metric we are interested in is the probability of observing a REWARD. The only source of uncertainty is the location of the obstacle.

4.3 System-Under-Steer / Environment / Generative Process

We assume that the reality of the generative process is given by the following implementation:

class ObstacleEnvir():
    def __init__(self, pILeftI=0.7):
        self.sˣ0_0 = 'CENTER' ## initial location
        self.sˣ_0 = self.sˣ0_0 ## current location
        self.sˣ_1 = None ## obstacle location
        self.pILeftI = pILeftI ## probability of obstacle being on the Left

    def step(self, a_lab):
        if a_lab == "MOVE_LEFT": ## action label
            if self.sˣ_0 == 'LEFT_REWARD':
                self.sˣ_0 = 'LEFT_REWARD'
                o_0 = 'LEFT_REWARD' ## location obs
                o_1 = 'NULL' ## reward obs
                o_2 = 'STAYED' ## move obs
            elif self.sˣ_0 == 'LEFT':
                self.sˣ_0 = 'LEFT_REWARD'
                o_0 = 'LEFT_REWARD'
                o_1 = 'REWARD'
                o_2 = 'MOVED_LEFT'
            elif self.sˣ_0 == 'CENTER':
                if self.sˣ_1=='LEFT':
                    self.sˣ_0 = 'CENTER'
                    o_0 = 'CENTER'
                    o_1 = 'COLLISION'
                    o_2 = 'STAYED'
                else: ## self.s̆_1=='RIGHT'
                    self.sˣ_0 = 'LEFT'
                    o_0 = 'LEFT'
                    o_1 = 'NULL'
                    o_2 = 'MOVED_LEFT'
            elif self.sˣ_0 == 'RIGHT':
                self.sˣ_0 = 'CENTER'
                o_0 = 'CENTER'
                o_1 = 'NULL'
                o_2 = 'MOVED_LEFT'
            elif self.sˣ_0 == 'RIGHT_REWARD':
                self.sˣ_0 = 'RIGHT'
                o_0 = 'RIGHT'
                o_1 = 'NULL'
                o_2 = 'MOVED_LEFT'
            else:
                print(f'ERROR: Invalid action_lab: {a_lab}')
        elif a_lab == "MOVE_RIGHT":
            if self.sˣ_0 == 'RIGHT_REWARD':
                self.sˣ_0 = 'RIGHT_REWARD'
                o_0 = 'RIGHT_REWARD'
                o_1 = 'NULL'
                o_2 = 'STAYED'
            elif self.sˣ_0 == 'RIGHT':
                self.sˣ_0 = 'RIGHT_REWARD'
                o_0 = 'RIGHT_REWARD'
                o_1 = 'REWARD'
                o_2 = 'MOVED_RIGHT'
            elif self.sˣ_0 == 'CENTER':
                if self.sˣ_1=='RIGHT':
                    self.sˣ_0 = 'CENTER'
                    o_0 = 'CENTER'
                    o_1 = 'COLLISION'
                    o_2 = 'STAYED'
                else: ## self.sˣ_1=='Left'
                    self.sˣ_0 = 'RIGHT'
                    o_0 = 'RIGHT'
                    o_1 = 'NULL'
                    o_2 = 'MOVED_RIGHT'
            elif self.sˣ_0 == 'LEFT':
                self.sˣ_0 = 'CENTER'
                o_0 = 'CENTER'
                o_1 = 'NULL'
                o_2 = 'MOVED_RIGHT'
            elif self.sˣ_0 == 'LEFT_REWARD':
                self.sˣ_0 = 'LEFT'
                o_0 = 'LEFT'
                o_1 = 'NULL'
                o_2 = 'MOVED_RIGHT'
            else:
                print(f'ERROR: Invalid action_lab: {a_lab}')
        obs = [o_0, o_1, o_2]
        return obs

    def reset(self):
        self.sˣ_0 = self.sˣ0_0
        self.sˣ_1 = 'LEFT' if random.random() < self.pILeftI else 'RIGHT'
        print(f'{self.sˣ_1=}')
        print(f'Re-initialized location to {self.sˣ0_0}')
        o_0 = self.sˣ_0
        o_2 = 'STAYED'
        o_1 = 'NULL'
        print(f'{o_0=}, {o_1=}, {o_2=}')
        return o_0, o_1, o_2

Give this environment class a quick test drive:

envir = ObstacleEnvir(pILeftI=0.6)
envir
<__main__.ObstacleEnvir at 0x7fc8d9493a30>
envir.reset()
self.sˣ_1='LEFT'
Re-initialized location to CENTER
o_0='CENTER', o_1='NULL', o_2='STAYED'
('CENTER', 'NULL', 'STAYED')
envir.step('MOVE_LEFT')
['CENTER', 'COLLISION', 'STAYED']

4.4 Uncertainty Model

The uncertainty of the location of the Obstacle Location is provided for in the reset() function of class ObstacleEnvir()

4.5 Agent / Generative Model

The following lookup dictionary allows for lookup between indexes & labels:

lup = { ## lookup between indexes & labels
    ## control/action factors
    'a_0': [ ## Move
        'MOVE_LEFT', 'MOVE_RIGHT'],

    ## state factors
    's_0': [ ## Location
        'LEFT_REWARD', 'LEFT', 'CENTER', 'RIGHT', 'RIGHT_REWARD'],
    's_1': [ ## Obstacle Location ## uncontrollable
        'LEFT', 'RIGHT'],

    ## observation modalities
    'o_0': [ ## Location observation
        'LEFT_REWARD', 'LEFT', 'CENTER', 'RIGHT', 'RIGHT_REWARD'],
    'o_1': [ ## Reward observation
        'NULL', 'REWARD', 'COLLISION'],
    'o_2': [ ## Move observation
        'STAYED', 'MOVED_LEFT', 'MOVED_RIGHT'],
}
## dimensionalities/cardinalities
_a_dims = [2, 1]; print(f'{_a_dims=}') ## have '1' for uncontrollable s_1
_s_dims = [5, 2]; print(f'{_s_dims=}')
_o_dims = [5, 3, 3]; print(f'{_o_dims=}')
_a_dims=[2, 1]
_s_dims=[5, 2]
_o_dims=[5, 3, 3]

Observation likelihood matrix, \(\mathbf A\) or \(P(o_t\mid s_t)\)

print(_s_dims)
print(_o_dims)
[5, 2]
[5, 3, 3]
_A_shapes = [[o_dim] + _s_dims for o_dim in _o_dims]
_A_shapes
[[5, 5, 2], [3, 5, 2], [3, 5, 2]]
_A = np_zeros_list(_A_shapes)
_A
[array([[[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]]]),
 array([[[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]]]),
 array([[[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]]])]

Observation modality \(o_0\) (Location observation)

A[0] or \(P(o_{0,t}\mid s_{0,t}, s_{1,t})\)

Assume there is no noise in the observations. This means the Location of the agent is reported accurately as \(o_0\) (proprioceptive observation modality). Note that the agent can not occupy the location where the obstacle is.

##    o_0   s_0   s_1
_A[0][:,    :,    0] = np.eye(_s_dims[0])
_A[0][:,    :,    1] = np.eye(_s_dims[0])

print(_A[0].shape)
_A[0]
(5, 5, 2)
array([[[1., 1.],
        [0., 0.],
        [0., 0.],
        [0., 0.],
        [0., 0.]],

       [[0., 0.],
        [1., 1.],
        [0., 0.],
        [0., 0.],
        [0., 0.]],

       [[0., 0.],
        [0., 0.],
        [1., 1.],
        [0., 0.],
        [0., 0.]],

       [[0., 0.],
        [0., 0.],
        [0., 0.],
        [1., 1.],
        [0., 0.]],

       [[0., 0.],
        [0., 0.],
        [0., 0.],
        [0., 0.],
        [1., 1.]]])
is_normalized(_A[0])
True

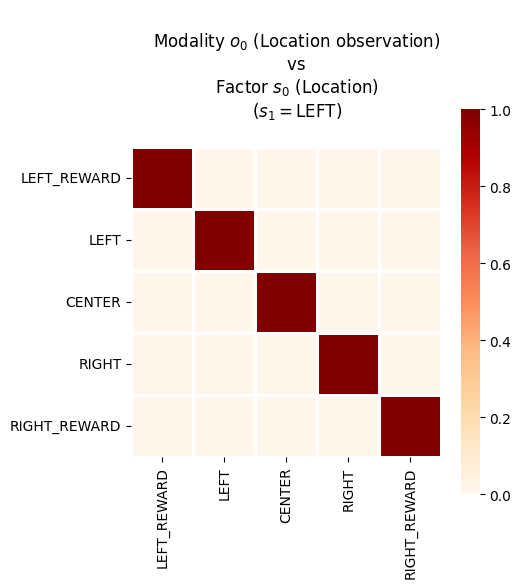

plot_likelihood(
    _A[0][:,:,0],
    title_str="""
    Modality $o_0$ (Location observation)
    vs
    Factor $s_0$ (Location)
    ($s_1=\mathrm{LEFT}$)
    """,
    yticklabels=lup['o_0'],
    xticklabels=lup['s_0']
)

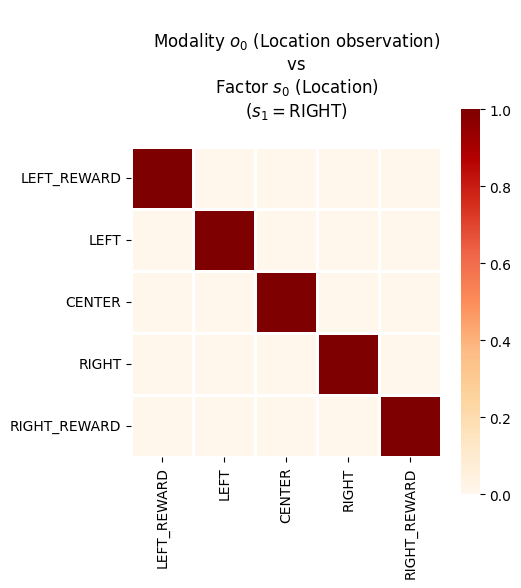

plot_likelihood(
    _A[0][:,:,1],
    title_str="""
    Modality $o_0$ (Location observation)
    vs
    Factor $s_0$ (Location)
    ($s_1=\mathrm{RIGHT}$)
    """,
    yticklabels=lup['o_0'],
    xticklabels=lup['s_0']
)

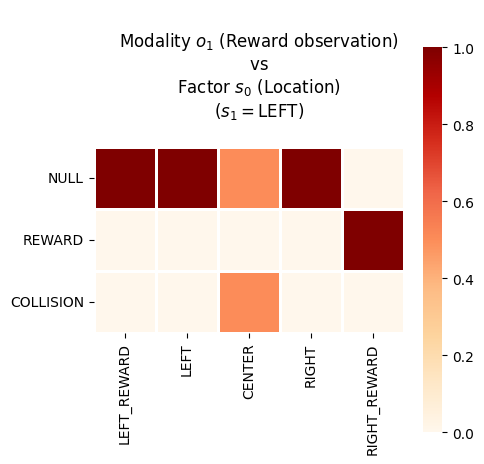

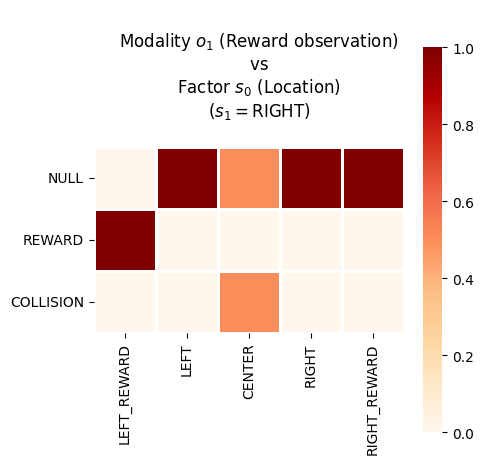

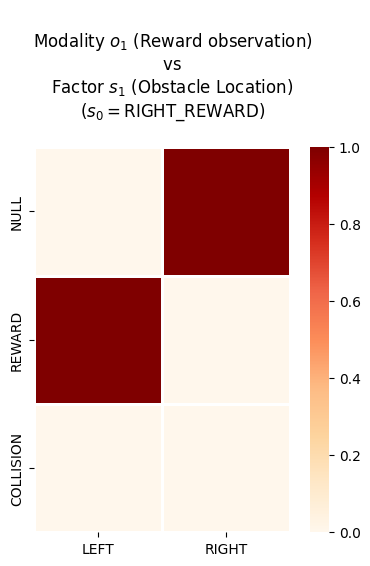

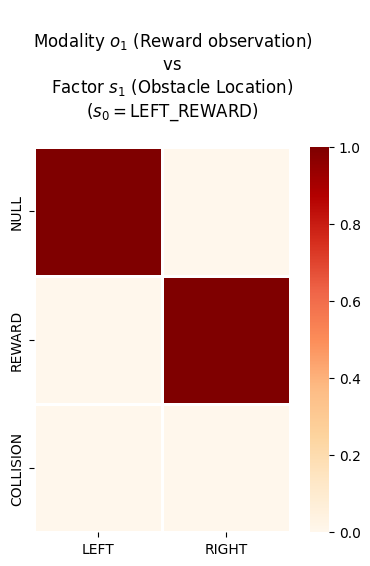

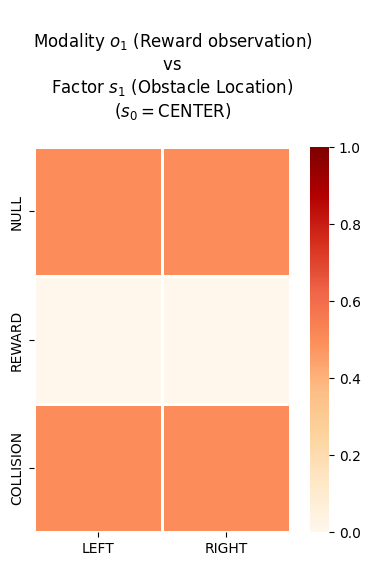

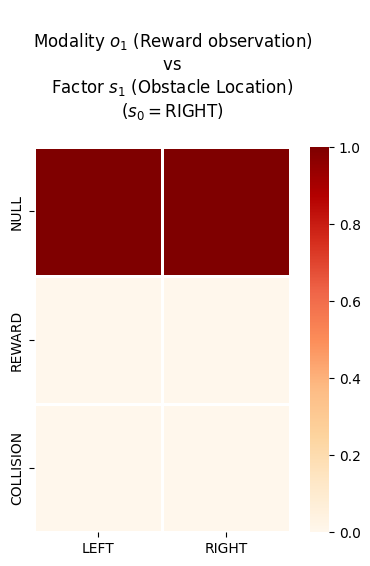

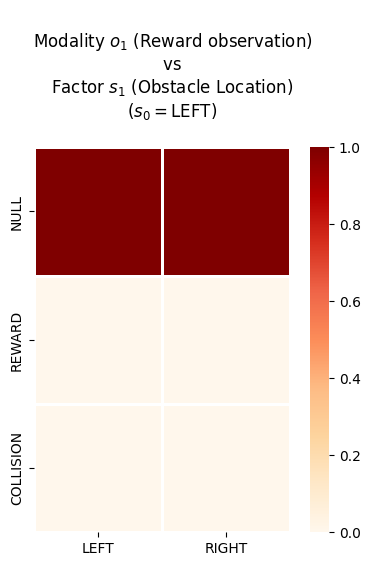

A[1] or \(P(o_{1,t}\mid s_{0,t}, s_{1,t})\)

_A[1][
    lup['o_1'].index('REWARD'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[1][
    lup['o_1'].index('REWARD'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_1'].index('RIGHT')
] = 1.0

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('RIGHT')
] = 0.5
_A[1][
    lup['o_1'].index('COLLISION'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('RIGHT')
] = 0.5

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('LEFT')
] = 0.5
_A[1][
    lup['o_1'].index('COLLISION'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('LEFT')
] = 0.5

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('RIGHT'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('LEFT'),
    lup['s_1'].index('RIGHT')
] = 1.0

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_1'].index('RIGHT')
] = 1.0

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('LEFT'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[1][
    lup['o_1'].index('NULL'),
    lup['s_0'].index('RIGHT'),
    lup['s_1'].index('RIGHT')
] = 1.0

print(_A[1].shape)
_A[1]
(3, 5, 2)
array([[[1. , 0. ],
        [1. , 1. ],
        [0.5, 0.5],
        [1. , 1. ],
        [0. , 1. ]],

       [[0. , 1. ],
        [0. , 0. ],
        [0. , 0. ],
        [0. , 0. ],
        [1. , 0. ]],

       [[0. , 0. ],
        [0. , 0. ],
        [0.5, 0.5],
        [0. , 0. ],
        [0. , 0. ]]])
is_normalized(_A[1])
True
plot_likelihood(
    _A[1][:,:,0],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_0$ (Location)
    ($s_1=\mathrm{LEFT}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_0']
)

plot_likelihood(
    _A[1][:,:,1],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_0$ (Location)
    ($s_1=\mathrm{RIGHT}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_0']
)

plot_likelihood(
    _A[1][:,0,:],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{LEFT\_REWARD}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_1']
)

plot_likelihood(
    _A[1][:,1,:],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{LEFT}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_1']
)

plot_likelihood(
    _A[1][:,2,:],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{CENTER}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_1']
)

plot_likelihood(
    _A[1][:,3,:],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{RIGHT}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_1']
)

plot_likelihood(
    _A[1][:,4,:],
    title_str="""
    Modality $o_1$ (Reward observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{RIGHT\_REWARD}$)
    """,
    yticklabels=lup['o_1'],
    xticklabels=lup['s_1']
)

A[2] or \(P(o_{2,t}\mid s_{0,t}, s_{1,t})\)

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('RIGHT')
] = 0.5
_A[2][
    lup['o_2'].index('MOVED_RIGHT'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('RIGHT')
] = 0.5

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('LEFT')
] = 0.5
_A[2][
    lup['o_2'].index('MOVED_LEFT'),
    lup['s_0'].index('CENTER'),
    lup['s_1'].index('LEFT')
] = 0.5

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[2][
    lup['o_2'].index('MOVED_LEFT'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_1'].index('RIGHT')
] = 0.6
_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_1'].index('RIGHT')
] = 0.4

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('LEFT'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[2][
    lup['o_2'].index('MOVED_LEFT'),
    lup['s_0'].index('LEFT'),
    lup['s_1'].index('RIGHT')
] = 0.9
_A[2][
    lup['o_2'].index('MOVED_RIGHT'),
    lup['s_0'].index('LEFT'),
    lup['s_1'].index('RIGHT')
] = 0.1

_A[2][
    lup['o_2'].index('MOVED_LEFT'),
    lup['s_0'].index('RIGHT'),
    lup['s_1'].index('LEFT')
] = 0.1
_A[2][
    lup['o_2'].index('MOVED_RIGHT'),
    lup['s_0'].index('RIGHT'),
    lup['s_1'].index('LEFT')
] = 0.9

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('RIGHT'),
    lup['s_1'].index('RIGHT')
] = 1.0

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('LEFT'),
    lup['s_1'].index('LEFT')
] = 1.0

_A[2][
    lup['o_2'].index('MOVED_RIGHT'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_1'].index('LEFT')
] = 0.6
_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_1'].index('LEFT')
] = 0.4

_A[2][
    lup['o_2'].index('STAYED'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_1'].index('RIGHT')
] = 1.0


print(_A[2].shape)
_A[2]
(3, 5, 2)
array([[[1. , 0.4],
        [1. , 0. ],
        [0.5, 0.5],
        [0. , 1. ],
        [0.4, 1. ]],

       [[0. , 0.6],
        [0. , 0.9],
        [0.5, 0. ],
        [0.1, 0. ],
        [0. , 0. ]],

       [[0. , 0. ],
        [0. , 0.1],
        [0. , 0.5],
        [0.9, 0. ],
        [0.6, 0. ]]])
is_normalized(_A[2])
True

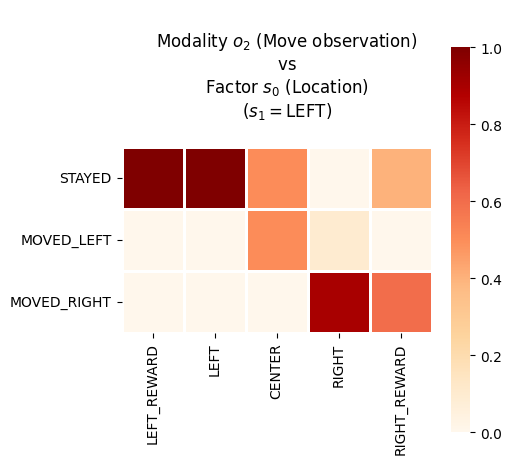

plot_likelihood(
    _A[2][:,:,0],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_0$ (Location)
    ($s_1=\mathrm{LEFT}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_0']
)

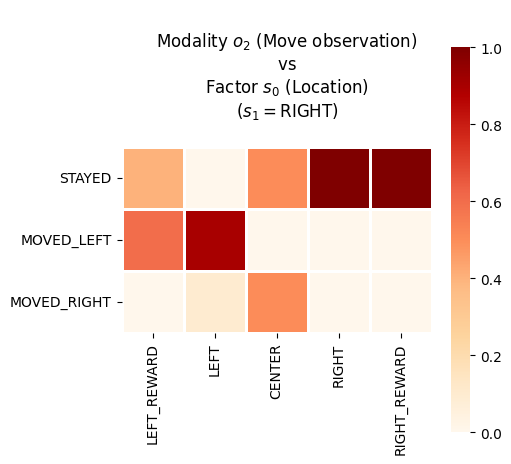

plot_likelihood(
    _A[2][:,:,1],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_0$ (Location)
    ($s_1=\mathrm{RIGHT}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_0']
)

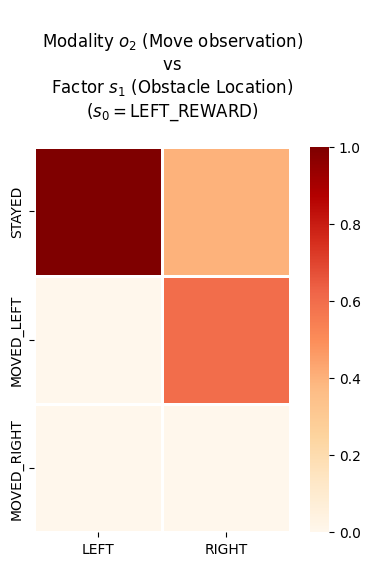

plot_likelihood(
    _A[2][:,0,:],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{LEFT\_REWARD}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_1']
)

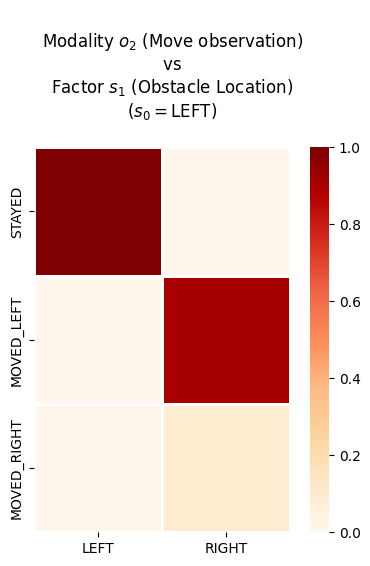

plot_likelihood(
    _A[2][:,1,:],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{LEFT}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_1']
)

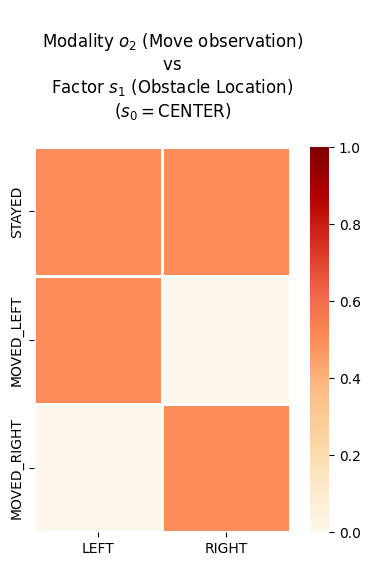

plot_likelihood(
    _A[2][:,2,:],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{CENTER}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_1']
)

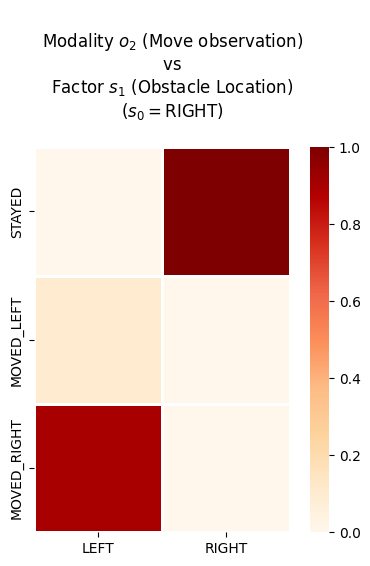

plot_likelihood(
    _A[2][:,3,:],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{RIGHT}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_1']
)

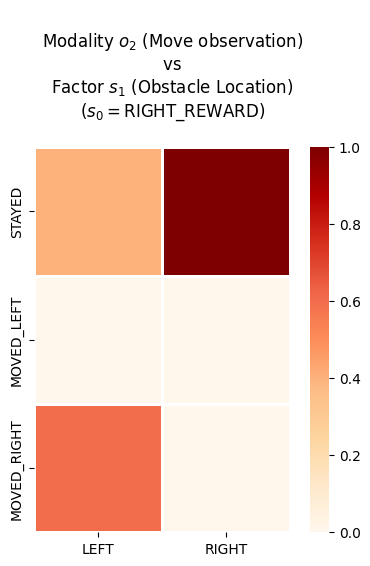

plot_likelihood(
    _A[2][:,4,:],
    title_str="""
    Modality $o_2$ (Move observation)
    vs
    Factor $s_1$ (Obstacle Location)
    ($s_0=\mathrm{RIGHT\_REWARD}$)
    """,
    yticklabels=lup['o_2'],
    xticklabels=lup['s_1']
)

print(f'=== _s_dims:\n{_s_dims}')
print(f'=== _o_dims:\n{_o_dims}')
_A
=== _s_dims:
[5, 2]
=== _o_dims:
[5, 3, 3]
[array([[[1., 1.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [1., 1.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [1., 1.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [1., 1.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [1., 1.]]]),
 array([[[1. , 0. ],
         [1. , 1. ],
         [0.5, 0.5],
         [1. , 1. ],
         [0. , 1. ]],

        [[0. , 1. ],
         [0. , 0. ],
         [0. , 0. ],
         [0. , 0. ],
         [1. , 0. ]],

        [[0. , 0. ],
         [0. , 0. ],
         [0.5, 0.5],
         [0. , 0. ],
         [0. , 0. ]]]),
 array([[[1. , 0.4],
         [1. , 0. ],
         [0.5, 0.5],
         [0. , 1. ],
         [0.4, 1. ]],

        [[0. , 0.6],
         [0. , 0.9],
         [0.5, 0. ],
         [0.1, 0. ],
         [0. , 0. ]],

        [[0. , 0. ],
         [0. , 0.1],
         [0. , 0.5],
         [0.9, 0. ],
         [0.6, 0. ]]])]

Transition likelihood matrix, \(\mathbf B\) or \(P(s_{t}\mid s_{t-1}, u_{t-1})\)

print(_a_dims)
print(_s_dims)
[2, 1]
[5, 2]
_B_shapes = [[s_dim, s_dim, _a_dims[f]] for f,s_dim in enumerate(_s_dims)]
_B_shapes
[[5, 5, 2], [2, 2, 1]]
_B = np_zeros_list(_B_shapes)
_B
[array([[[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]],

        [[0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.],
         [0., 0.]]]),
 array([[[0.],
         [0.]],

        [[0.],
         [0.]]])]

State factor \(s_0\) (Location)

B[0] or \(P(s_{0,t}\mid s_{0,t-1}, u_{0,t-1})\)

_B[0][
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['a_0'].index('MOVE_LEFT')
] = 1.0

_B[0][
    lup['s_0'].index('LEFT'),
    lup['s_0'].index('LEFT_REWARD'),
    lup['a_0'].index('MOVE_RIGHT')
] = 1.0

_B[0][
    lup['s_0'].index('LEFT_REWARD'),
    lup['s_0'].index('LEFT'),
    lup['a_0'].index('MOVE_LEFT')
] = 1.0

_B[0][
    lup['s_0'].index('CENTER'),
    lup['s_0'].index('LEFT'),
    lup['a_0'].index('MOVE_RIGHT')
] = 1.0

_B[0][ ## obstacle in LEFT
    lup['s_0'].index('CENTER'),
    lup['s_0'].index('CENTER'),
    lup['a_0'].index('MOVE_LEFT')
] = 0.5
_B[0][ ## obstacle in RIGHT
    lup['s_0'].index('LEFT'),
    lup['s_0'].index('CENTER'),
    lup['a_0'].index('MOVE_LEFT')
] = 0.5

_B[0][ ## obstacle in LEFT
    lup['s_0'].index('RIGHT'),
    lup['s_0'].index('CENTER'),
    lup['a_0'].index('MOVE_RIGHT')
] = 0.5
_B[0][ ## obstacle in RIGHT
    lup['s_0'].index('CENTER'),
    lup['s_0'].index('CENTER'),
    lup['a_0'].index('MOVE_RIGHT')
] = 0.5

_B[0][
    lup['s_0'].index('CENTER'),
    lup['s_0'].index('RIGHT'),
    lup['a_0'].index('MOVE_LEFT')
] = 1.0

_B[0][
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_0'].index('RIGHT'),
    lup['a_0'].index('MOVE_RIGHT')
] = 1.0

_B[0][
    lup['s_0'].index('RIGHT'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['a_0'].index('MOVE_LEFT')
] = 1.0

_B[0][
    lup['s_0'].index('RIGHT_REWARD'),
    lup['s_0'].index('RIGHT_REWARD'),
    lup['a_0'].index('MOVE_RIGHT')
] = 1.0

print(_B[0].shape)
_B[0]
(5, 5, 2)
array([[[1. , 0. ],
        [1. , 0. ],
        [0. , 0. ],
        [0. , 0. ],
        [0. , 0. ]],

       [[0. , 1. ],
        [0. , 0. ],
        [0.5, 0. ],
        [0. , 0. ],
        [0. , 0. ]],

       [[0. , 0. ],
        [0. , 1. ],
        [0.5, 0.5],
        [1. , 0. ],
        [0. , 0. ]],

       [[0. , 0. ],
        [0. , 0. ],
        [0. , 0.5],
        [0. , 0. ],
        [1. , 0. ]],

       [[0. , 0. ],
        [0. , 0. ],
        [0. , 0. ],
        [0. , 1. ],
        [0. , 1. ]]])
is_normalized(_B[0])
True

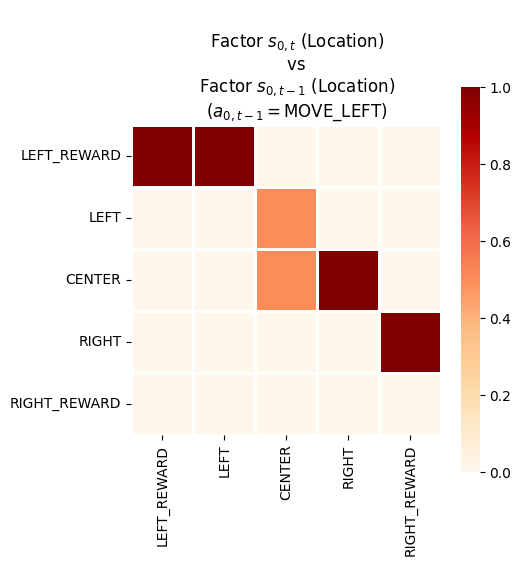

plot_likelihood(
    _B[0][:,:,lup['a_0'].index('MOVE_LEFT')],
    title_str="""
    Factor $s_{0,t}$ (Location)
    vs
    Factor $s_{0,t-1}$ (Location)
    ($a_{0,t-1}=\mathrm{MOVE\_LEFT}$)""",
    yticklabels=lup['s_0'],
    xticklabels=lup['s_0'],
)

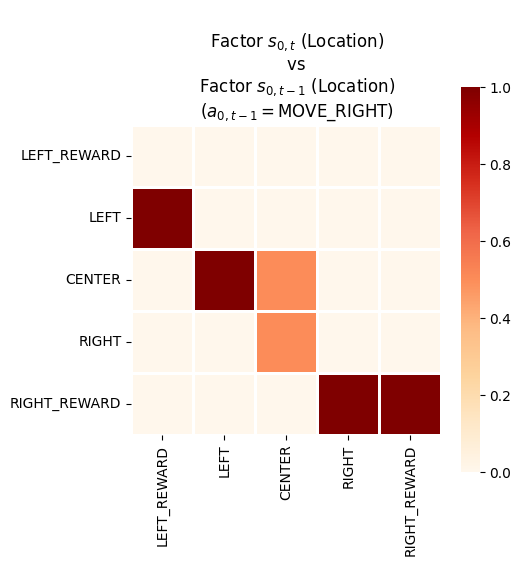

plot_likelihood(
    _B[0][:,:,lup['a_0'].index('MOVE_RIGHT')],
    title_str="""
    Factor $s_{0,t}$ (Location)
    vs
    Factor $s_{0,t-1}$ (Location)
    ($a_{0,t-1}=\mathrm{MOVE\_RIGHT}$)""",
    yticklabels=lup['s_0'],
    xticklabels=lup['s_0'],
)

State factor \(s_1\) (Obstacle Location)

B[1] or \(P(s_{1,t}\mid s_{1,t-1}, u_{1,t-1})\)

_B[1][
    :,
    :,
    0 ## for uncontrollable, 0 for the only value: 'null/no-action'
] = np.eye(_s_dims[1]) ##.
_B[1]
array([[[1.],
        [0.]],

       [[0.],
        [1.]]])
is_normalized(_B[1])
True

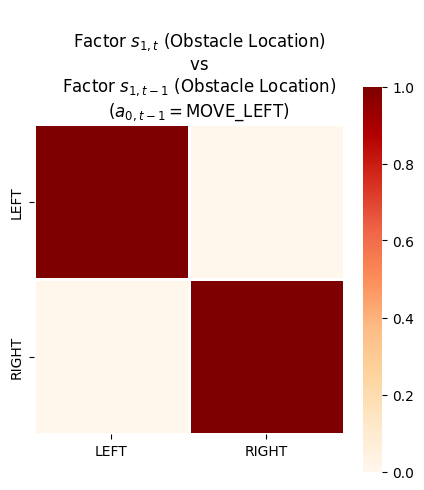

plot_likelihood(
    _B[1][:,:,lup['a_0'].index('MOVE_LEFT')],
    title_str="""
    Factor $s_{1,t}$ (Obstacle Location)
    vs
    Factor $s_{1,t-1}$ (Obstacle Location)
    ($a_{0,t-1}=\mathrm{MOVE\_LEFT}$)""",
    yticklabels=lup['s_1'],
    xticklabels=lup['s_1'],
)

print(f'=== _a_dims:\n{_a_dims}')
print(f'=== _s_dims:\n{_s_dims}')
_B
=== _a_dims:
[2, 1]
=== _s_dims:
[5, 2]
[array([[[1. , 0. ],
         [1. , 0. ],
         [0. , 0. ],
         [0. , 0. ],
         [0. , 0. ]],

        [[0. , 1. ],
         [0. , 0. ],
         [0.5, 0. ],
         [0. , 0. ],
         [0. , 0. ]],

        [[0. , 0. ],
         [0. , 1. ],
         [0.5, 0.5],
         [1. , 0. ],
         [0. , 0. ]],

        [[0. , 0. ],
         [0. , 0. ],
         [0. , 0.5],
         [0. , 0. ],
         [1. , 0. ]],

        [[0. , 0. ],
         [0. , 0. ],
         [0. , 0. ],
         [0. , 1. ],
         [0. , 1. ]]]),
 array([[[1.],
         [0.]],

        [[0.],
         [1.]]])]

Prior preferences, \(\mathbf C\) (the C vectors)

print(_o_dims)
[5, 3, 3]
_C = np_zeros_list(_o_dims)
_C
[array([0., 0., 0., 0., 0.]), array([0., 0., 0.]), array([0., 0., 0.])]
_C[1][1] = 2.0 ## make the agent want to encounter the 'Reward' observation level
_C[1][2] = -4.0 ## make the agent NOT want to encounter the 'Collision' observation level
## we don't care about the other observation modalities for preferences
_C
[array([0., 0., 0., 0., 0.]), array([ 0.,  2., -4.]), array([0., 0., 0.])]
plot_beliefs(softmax(jnp.asarray(_C[1])), title_str="Prior preferences with softmax")

Prior over (initial) hidden states, \(\mathbf D\) (the D vectors)

print(_s_dims)
[5, 2]
_D = np_uniform_list(_s_dims)
_D
[array([0.2, 0.2, 0.2, 0.2, 0.2]), array([0.5, 0.5])]

The agent believes it always starts in \(s_0=\mathrm{'Center'}\). This belief aligns with reality as defined by the generative process.

_D[0] = onehot(lup['s_0'].index('CENTER'), len(lup['s_0']))
_D
[array([0., 0., 1., 0., 0.]), array([0.5, 0.5])]
plot_beliefs(_D[0], title_str="Prior over $s_0\ (\mathrm{Location})$")

plot_beliefs(_D[1], title_str="Prior over $s_1\ (\mathrm{Obstacle Location})$")

4.6 Active Inference / Agent Evaluation

random.seed(20) ## seeds the environment (obstacle placement)
rng_key = jr.PRNGKey(20) ## seeds the agent (JAX needs explicit keys)
envir = ObstacleEnvir(pILeftI=0.9)
envir
<__main__.ObstacleEnvir at 0x7fc8d6bb0e50>
## list of the indices of the hidden state factors that are controllable
## s_0 (Location): controllable; s_1 (Obstacle Location): not controllable
controllable_indices = [0]

agent = Agent(
    A=[jnp.asarray(a) for a in _A], ## JAX: convert numpy model to jnp arrays
    B=[jnp.asarray(b) for b in _B],
    C=[jnp.asarray(c) for c in _C],
    D=[jnp.asarray(d) for d in _D],
    policy_len = 6,
    control_fac_idx=controllable_indices,
    action_selection="deterministic", ## same as legacy default
    sampling_mode="marginal", ## legacy default; JAX default is "full"
)
agent
Agent(
  A=[f32[1,5,5,2], f32[1,3,5,2], f32[1,3,5,2]],
  B=[f32[1,5,5,2], f32[1,2,2,1]],
  C=[f32[1,5], f32[1,3], f32[1,3]],
  D=[f32[1,5], f32[1,2]],
  E=f32[1,64],
  pA=None,
  pB=None,
  gamma=weak_f32[1],
  alpha=weak_f32[1],
  policies=Policies(
    _policy_tup=(
      ((0, 0), (0, 0), (0, 0), (0, 0), (0, 0), (0, 0)),
      ((0, 0), (0, 0), (0, 0), (0, 0), (0, 0), (1, 0)),
      ((0, 0), (0, 0), (0, 0), (0, 0), (1, 0), (0, 0)),
      ((0, 0), (0, 0), (0, 0), (0, 0), (1, 0), (1, 0)),
      ((0, 0), (0, 0), (0, 0), (1, 0), (0, 0), (0, 0)),
      ((0, 0), (0, 0), (0, 0), (1, 0), (0, 0), (1, 0)),
      ((0, 0), (0, 0), (0, 0), (1, 0), (1, 0), (0, 0)),
      ((0, 0), (0, 0), (0, 0), (1, 0), (1, 0), (1, 0)),
      ((0, 0), (0, 0), (1, 0), (0, 0), (0, 0), (0, 0)),
      ((0, 0), (0, 0), (1, 0), (0, 0), (0, 0), (1, 0)),
      ((0, 0), (0, 0), (1, 0), (0, 0), (1, 0), (0, 0)),
      ((0, 0), (0, 0), (1, 0), (0, 0), (1, 0), (1, 0)),
      ((0, 0), (0, 0), (1, 0), (1, 0), (0, 0), (0, 0)),
      ((0, 0), (0, 0), (1, 0), (1, 0), (0, 0), (1, 0)),
      ((0, 0), (0, 0), (1, 0), (1, 0), (1, 0), (0, 0)),
      ((0, 0), (0, 0), (1, 0), (1, 0), (1, 0), (1, 0)),
      ((0, 0), (1, 0), (0, 0), (0, 0), (0, 0), (0, 0)),
      ((0, 0), (1, 0), (0, 0), (0, 0), (0, 0), (1, 0)),
      ((0, 0), (1, 0), (0, 0), (0, 0), (1, 0), (0, 0)),
      ((0, 0), (1, 0), (0, 0), (0, 0), (1, 0), (1, 0)),
      ((0, 0), (1, 0), (0, 0), (1, 0), (0, 0), (0, 0)),
      ((0, 0), (1, 0), (0, 0), (1, 0), (0, 0), (1, 0)),
      ((0, 0), (1, 0), (0, 0), (1, 0), (1, 0), (0, 0)),
      ((0, 0), (1, 0), (0, 0), (1, 0), (1, 0), (1, 0)),
      ((0, 0), (1, 0), (1, 0), (0, 0), (0, 0), (0, 0)),
      ((0, 0), (1, 0), (1, 0), (0, 0), (0, 0), (1, 0)),
      ((0, 0), (1, 0), (1, 0), (0, 0), (1, 0), (0, 0)),
      ((0, 0), (1, 0), (1, 0), (0, 0), (1, 0), (1, 0)),
      ((0, 0), (1, 0), (1, 0), (1, 0), (0, 0), (0, 0)),
      ((0, 0), (1, 0), (1, 0), (1, 0), (0, 0), (1, 0)),
      ((0, 0), (1, 0), (1, 0), (1, 0), (1, 0), (0, 0)),
      ((0, 0), (1, 0), (1, 0), (1, 0), (1, 0), (1, 0)),
      ((1, 0), (0, 0), (0, 0), (0, 0), (0, 0), (0, 0)),
      ((1, 0), (0, 0), (0, 0), (0, 0), (0, 0), (1, 0)),
      ((1, 0), (0, 0), (0, 0), (0, 0), (1, 0), (0, 0)),
      ((1, 0), (0, 0), (0, 0), (0, 0), (1, 0), (1, 0)),
      ((1, 0), (0, 0), (0, 0), (1, 0), (0, 0), (0, 0)),
      ((1, 0), (0, 0), (0, 0), (1, 0), (0, 0), (1, 0)),
      ((1, 0), (0, 0), (0, 0), (1, 0), (1, 0), (0, 0)),
      ((1, 0), (0, 0), (0, 0), (1, 0), (1, 0), (1, 0)),
      ((1, 0), (0, 0), (1, 0), (0, 0), (0, 0), (0, 0)),
      ((1, 0), (0, 0), (1, 0), (0, 0), (0, 0), (1, 0)),
      ((1, 0), (0, 0), (1, 0), (0, 0), (1, 0), (0, 0)),
      ((1, 0), (0, 0), (1, 0), (0, 0), (1, 0), (1, 0)),
      ((1, 0), (0, 0), (1, 0), (1, 0), (0, 0), (0, 0)),
      ((1, 0), (0, 0), (1, 0), (1, 0), (0, 0), (1, 0)),
      ((1, 0), (0, 0), (1, 0), (1, 0), (1, 0), (0, 0)),
      ((1, 0), (0, 0), (1, 0), (1, 0), (1, 0), (1, 0)),
      ((1, 0), (1, 0), (0, 0), (0, 0), (0, 0), (0, 0)),
      ((1, 0), (1, 0), (0, 0), (0, 0), (0, 0), (1, 0)),
      ((1, 0), (1, 0), (0, 0), (0, 0), (1, 0), (0, 0)),
      ((1, 0), (1, 0), (0, 0), (0, 0), (1, 0), (1, 0)),
      ((1, 0), (1, 0), (0, 0), (1, 0), (0, 0), (0, 0)),
      ((1, 0), (1, 0), (0, 0), (1, 0), (0, 0), (1, 0)),
      ((1, 0), (1, 0), (0, 0), (1, 0), (1, 0), (0, 0)),
      ((1, 0), (1, 0), (0, 0), (1, 0), (1, 0), (1, 0)),
      ((1, 0), (1, 0), (1, 0), (0, 0), (0, 0), (0, 0)),
      ((1, 0), (1, 0), (1, 0), (0, 0), (0, 0), (1, 0)),
      ((1, 0), (1, 0), (1, 0), (0, 0), (1, 0), (0, 0)),
      ((1, 0), (1, 0), (1, 0), (0, 0), (1, 0), (1, 0)),
      ((1, 0), (1, 0), (1, 0), (1, 0), (0, 0), (0, 0)),
      ((1, 0), (1, 0), (1, 0), (1, 0), (0, 0), (1, 0)),
      ((1, 0), (1, 0), (1, 0), (1, 0), (1, 0), (0, 0)),
      ((1, 0), (1, 0), (1, 0), (1, 0), (1, 0), (1, 0))
    ),
    _dtype=dtype('int32'),
    horizon=6,
    num_policies=64
  ),
  inductive_threshold=weak_f32[1],
  inductive_epsilon=weak_f32[1],
  H=None,
  I=[f32[1,1,5], f32[1,1,2]],
  A_dependencies=[[0, 1], [0, 1], [0, 1]],
  B_dependencies=[[0], [1]],
  B_action_dependencies=[[0], [1]],
  action_maps=None,
  batch_size=1,
  num_iter=16,
  num_obs=[5, 3, 3],
  num_modalities=3,
  num_states=[5, 2],
  num_factors=2,
  num_controls=[2, 1],
  num_controls_multi=None,
  control_fac_idx=[0],
  policy_len=6,
  inference_horizon=None,
  inductive_depth=1,
  use_utility=True,
  use_states_info_gain=True,
  use_param_info_gain=False,
  use_inductive=False,
  categorical_obs=False,
  preprocess_fn=None,
  action_selection='deterministic',
  sampling_mode='marginal',
  inference_algo='fpi',
  learn_A=False,
  learn_B=False,
  learn_C=False,
  learn_D=False,
  learn_E=False
)
T = 20 ## number of timesteps
obs_lab = envir.reset() ## reset the environment and get an initial observation
obs_idx = [
    lup['o_0'].index(obs_lab[0]),
    lup['o_1'].index(obs_lab[1]),
    lup['o_2'].index(obs_lab[2])]

## JAX: the agent no longer stores beliefs internally; we carry the empirical prior ourselves
prior = agent.D ## at t=0 the prior over states is D
                                                   ##. with a
for t in range(T):                                 ##. slide
    print(f'{t=}')
    print(f'{obs_idx=}')
    obs = [jnp.array([o]) for o in obs_idx] ## leading batch dim (batch_size=1)
    qs = agent.infer_states(obs, empirical_prior=prior) ##.   ##. infer.
    qIsI = [np.asarray(q[0, -1]) for q in qs] ## drop batch & time dims -> one vector per factor

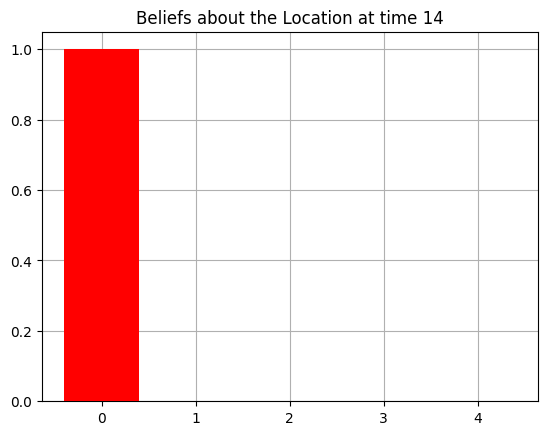

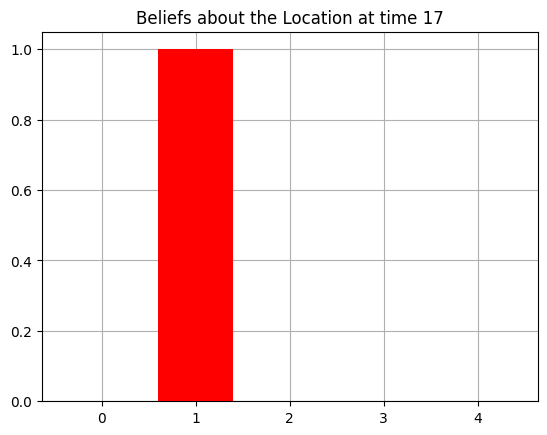

    plot_beliefs(qIsI[0], title_str = f"Beliefs about the Location at time {t}")

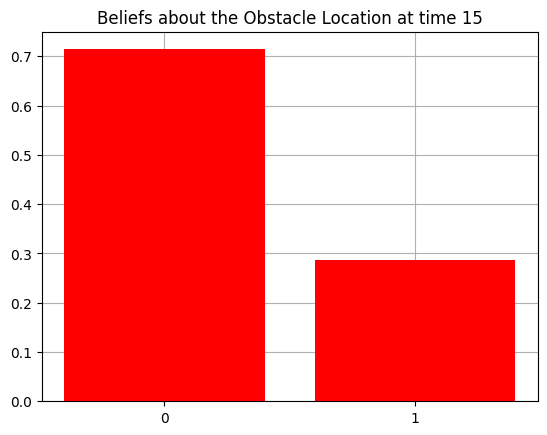

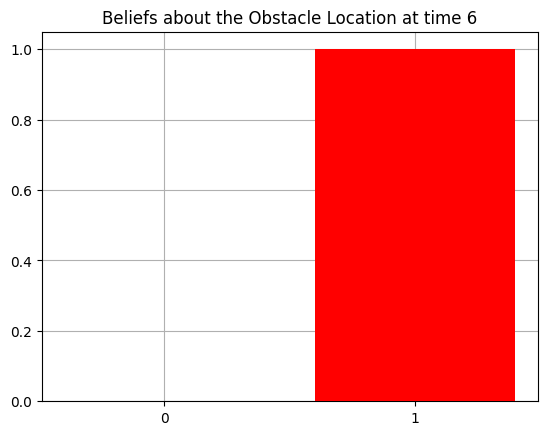

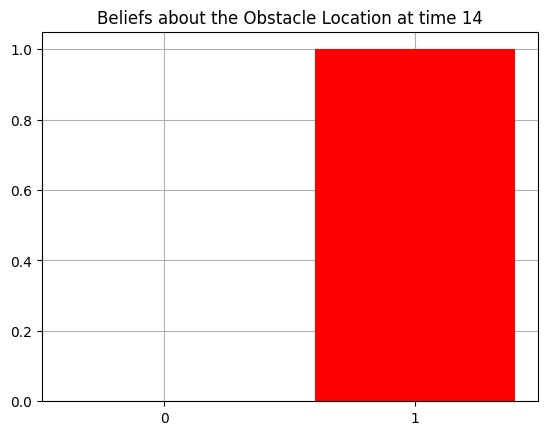

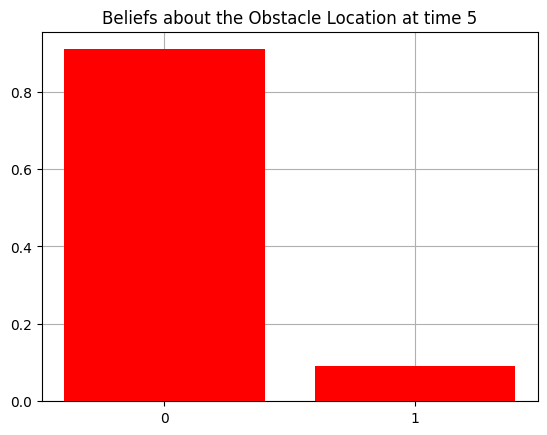

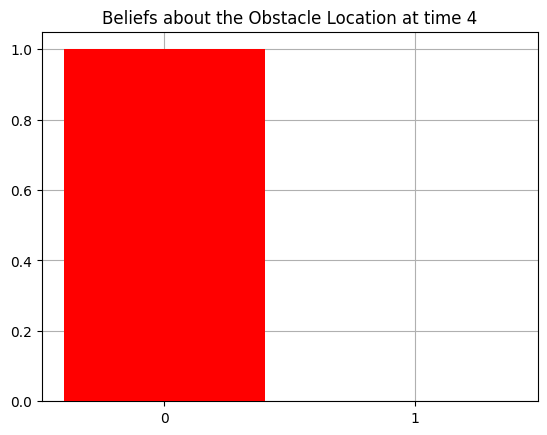

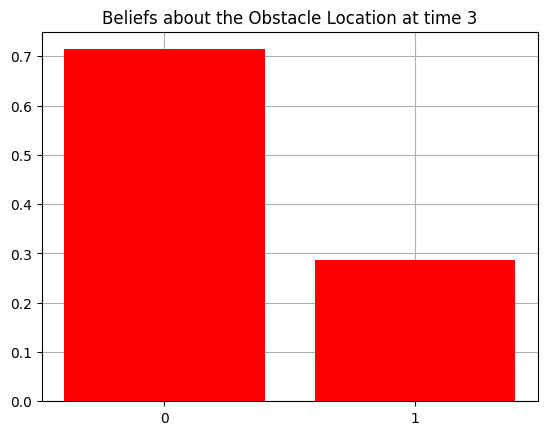

    plot_beliefs(qIsI[1], title_str = f"Beliefs about the Obstacle Location at time {t}")
    qIpiI, neg_efe = agent.infer_policies(qs) ##. (neg_efe = -EFE)

    rng_key, key_action = jr.split(rng_key)
    act = agent.sample_action(qIpiI, rng_key=jr.split(key_action, agent.batch_size)) ##. Act future &
    act_idx = np.asarray(act[0]) ## drop batch dim
    print(f'{act_idx=}')
    act_idx_controllable = int(act_idx[0]); print(f'{act_idx_controllable=}')
    act_lab_controllable = lup['a_0'][act_idx_controllable] ##.

    ## JAX: propagate beliefs through B under the chosen action -> prior for the next step
    prior = agent.update_empirical_prior(act, qs)

    obs_lab = envir.step(act_lab_controllable)    ##. next observe so
    obs_idx = [
        lup['o_0'].index(obs_lab[0]),
        lup['o_1'].index(obs_lab[1]),
        lup['o_2'].index(obs_lab[2])]

    print(f'location_obs: {obs_idx[0]}, reward_obs: {obs_idx[1]}, move_obs: {obs_idx[2]}')
self.sˣ_1='RIGHT'
Re-initialized location to CENTER
o_0='CENTER', o_1='NULL', o_2='STAYED'
t=0
obs_idx=[2, 0, 0]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 1, reward_obs: 0, move_obs: 1
t=1
obs_idx=[1, 0, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 1, move_obs: 1
t=2
obs_idx=[0, 1, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 0, move_obs: 0
t=3
obs_idx=[0, 0, 0]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 0, move_obs: 0
t=4
obs_idx=[0, 0, 0]
act_idx=array([1, 0], dtype=int32)
act_idx_controllable=1
location_obs: 1, reward_obs: 0, move_obs: 2
t=5
obs_idx=[1, 0, 2]
act_idx=array([1, 0], dtype=int32)
act_idx_controllable=1
location_obs: 2, reward_obs: 0, move_obs: 2
t=6
obs_idx=[2, 0, 2]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 1, reward_obs: 0, move_obs: 1
t=7
obs_idx=[1, 0, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 1, move_obs: 1
t=8
obs_idx=[0, 1, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 0, move_obs: 0
t=9
obs_idx=[0, 0, 0]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 0, move_obs: 0
t=10
obs_idx=[0, 0, 0]
act_idx=array([1, 0], dtype=int32)
act_idx_controllable=1
location_obs: 1, reward_obs: 0, move_obs: 2
t=11
obs_idx=[1, 0, 2]
act_idx=array([1, 0], dtype=int32)
act_idx_controllable=1
location_obs: 2, reward_obs: 0, move_obs: 2
t=12
obs_idx=[2, 0, 2]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 1, reward_obs: 0, move_obs: 1
t=13
obs_idx=[1, 0, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 1, move_obs: 1
t=14
obs_idx=[0, 1, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 0, move_obs: 0
t=15
obs_idx=[0, 0, 0]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 0, move_obs: 0
t=16
obs_idx=[0, 0, 0]
act_idx=array([1, 0], dtype=int32)
act_idx_controllable=1
location_obs: 1, reward_obs: 0, move_obs: 2
t=17
obs_idx=[1, 0, 2]
act_idx=array([1, 0], dtype=int32)
act_idx_controllable=1
location_obs: 2, reward_obs: 0, move_obs: 2
t=18
obs_idx=[2, 0, 2]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 1, reward_obs: 0, move_obs: 1
t=19
obs_idx=[1, 0, 1]
act_idx=array([0, 0], dtype=int32)
act_idx_controllable=0
location_obs: 0, reward_obs: 1, move_obs: 1

Conclusion

In the run above, the environment places the obstacle on the right (RIGHT). The agent reaches LEFT_REWARD four times in 20 steps (at \(t = 1, 7, 13, 19\)) and never collides with the obstacle.

Its beliefs about the Obstacle Location are only partly correct. The belief plots show a cycle that repeats every six steps:

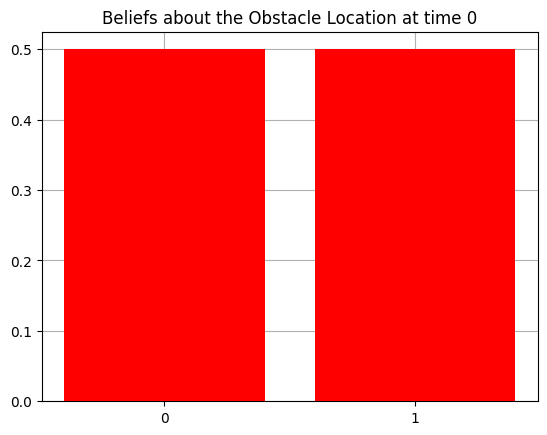

  • At \(t = 0\) the agent is in CENTER and believes both obstacle locations are equally likely. It moves left. Arriving in LEFT with the observation MOVED_LEFT tells it, correctly, that the obstacle must be on the right.
  • At \(t = 1\) it reaches LEFT_REWARD and observes REWARD, which confirms that belief.
  • While it stays at LEFT_REWARD, it observes NULL and STAYED. Under the agent’s model (A[1] and A[2]), these observations are more likely when the obstacle is on the left, so its belief flips to the wrong side (0.71 at \(t = 3\), 1.0 at \(t = 4\)).
  • No longer expecting a reward at LEFT_REWARD, it moves back toward CENTER. There the move observation restores the correct belief, and the cycle starts again.

The agent was deliberately designed to NOT have perfect knowledge of the workings of the environment, and these mismatches explain what we see:

  • The environment places the obstacle on the left with probability 0.9, whereas the agent’s initial belief is that both sides are equally likely. The obstacle is placed once per epoch, so within a single run the agent can only form beliefs about where the obstacle is this time; it cannot learn the 0.9 placement probability.
  • The agent’s beliefs about the dynamics around the LEFT_REWARD and RIGHT_REWARD end locations are different from the environment’s reality. In the environment, REWARD is observed only on the step the agent arrives at a reward location; staying there gives NULL and STAYED. The agent’s observation model depends only on the current states, so it cannot represent “just arrived”. Instead, it links these observations to the obstacle location, which causes the belief flip.
  • In the agent’s model, a COLLISION at CENTER is equally likely for both obstacle locations, and its movement model (B[0]) does not depend on the obstacle. A collision would therefore not tell the agent where the obstacle is. In this run the agent’s first move happened to be toward the free side, so no collision occurred.

Despite these mismatches, the agent collects the reward repeatedly. A model in which the agent keeps a correct belief at the reward location and learns from collisions would need the obstacle to affect movement in the model itself, for example with B_dependencies (new in pymdp 1.0) or by combining location and obstacle into a single state factor. That is a topic for a future post.
